Circular Vibro Screen

High-precision gyratory screening for grading, sifting, dewatering and de-dusting — from a single deck to multiple fractions. Driven by Saideep’s own unbalanced vibrator motor for accurate separation, low power draw and dust-free, near-silent operation.

Multi-deck fractions Anti-blinding Dust-free & quiet

Request a quote WhatsApp us

Overview

Accurate separation, in a small footprint

The circular vibro screen (vibratory screen separator) grades and separates material into precise fractions using gyratory motion. Its modular design stacks multiple decks to yield several predetermined sizes in one pass, while the closed-circuit construction keeps the process dust-free and quiet — ideal for everything from minerals and chemicals to food and pharma powders.

Technical specifications

Circular Vibro Screen range

Model range	SVS-12 to SVS-96 — 300 mm to 2400 mm screen diameter
Decks	Single deck to multi-deck; extra decks and screen frames retro-fit without disturbing upper decks
Drive	Special vibrator motor, shaft extended both sides with adjustable eccentric weights; mounted vertically on coil springs
Screening pattern	Adjustable 0°, 15°, 45° & 90° lead — radial, extended-dwell, spiral or centre-hold material travel
Anti-blinding	Ball tray (polymer balls) or ring tray (PVC/PU cylinders) — modular, fitted or removed as required
Screen ring types	Standard · Ultrasonic · Silicone moulded · Self-tensioning
Material of construction	AISI 304 stainless steel contact parts as standard; SS 316 & SS 316L available; mild steel on request
Operation	Totally enclosed and dust-free; suitable for wet (solid–liquid) screening

Dimension chart

Model	Screen Ø (mm)	Discharge height H1 (mm)	Overall height H (mm)	L (mm)	Inlet Ø D (mm)	Outlet Ø d (mm)
SVS-12	300	370	710	240	100	65
SVS-18	450	380	820	350	100	100
SVS-24	600	440	960	450	150	100
SVS-30	750	460	1080	560	150	150
SVS-36	900	500	1125	600	150	150
SVS-48	1200	550	1280	800	200	200
SVS-60	1500	715	1700	985	250	200
SVS-72	1800	715	1850	1100	300	250
SVS-84	2100	715	1825	1230	300	250
SVS-96	2400	715	2050	1480	350	300

Model numbers denote nominal screen diameter in inches (SVS-48 = 48″ / 1200 mm). Intermediate heights H2, H3 and H4 are given on the general-arrangement drawing. Specifications are subject to change with continuous design improvement — contact us for a certified drawing and data sheet for your duty.

Download the catalogue

Vibro Screen catalogue (PDF)

Benefits

Why operators choose the Saideep vibro screen

Low power consumption and a high processing rate per unit of screen area.
Accurate separation across a wide range of applications.
Modular multi-deck design yields multiple predetermined fractions in one pass.
Minimum screen blinding with ball / PVC-pipe anti-blinding trays.

Dust-free, noiseless processing within a closed circuit.
Adjustable screening pattern via top/bottom eccentric weight lead angles.
MS or stainless construction — food, pharma and chemical grades available.

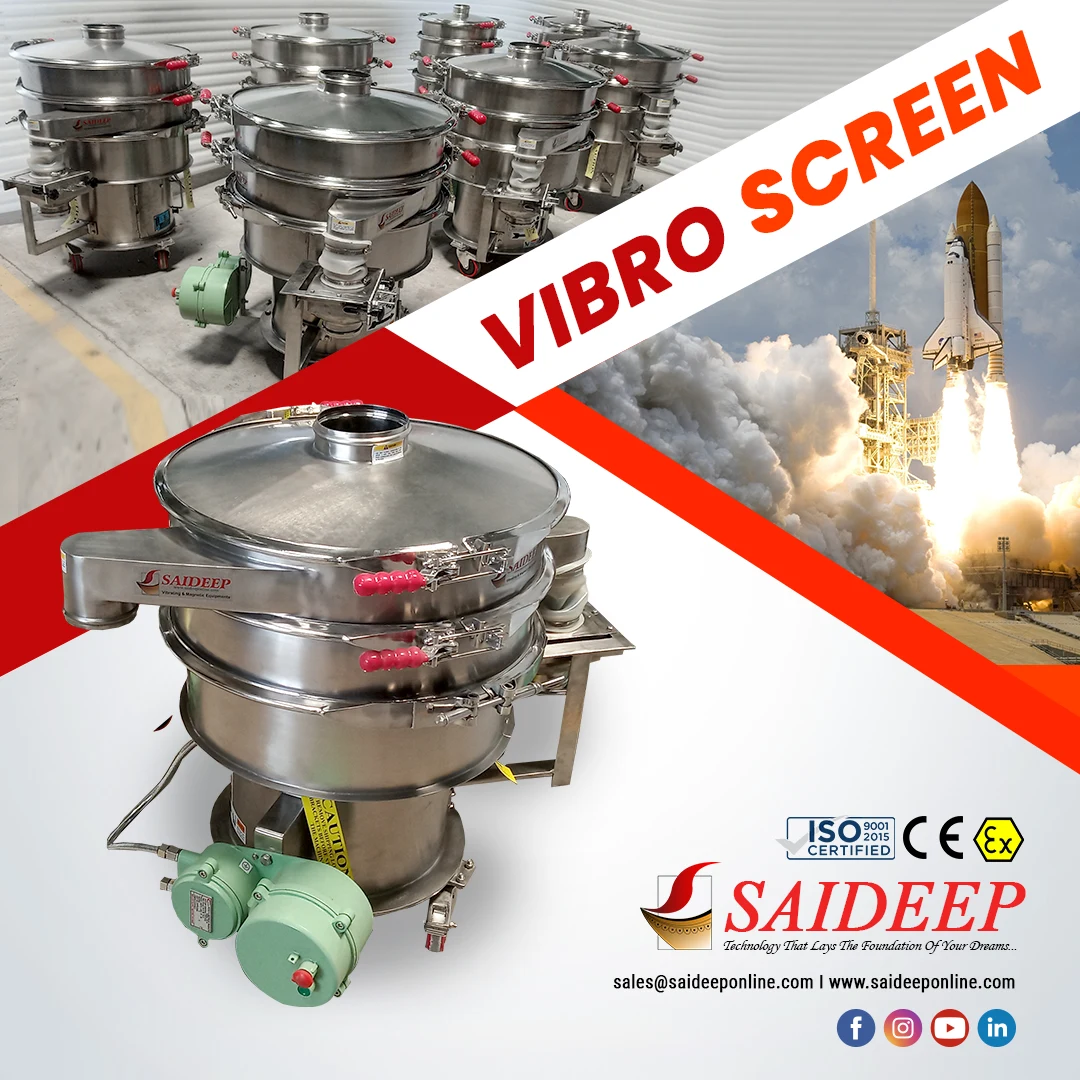

Driven by Saideep’s own vibrator motor — CE/ATEX options, IP66, built to last.

Circular vibro screen material flow pattern 1 — top-weight and bottom-weight setting — Flow pattern 1

Circular vibro screen material flow pattern 2 — top-weight and bottom-weight setting — Flow pattern 2

Circular vibro screen material flow pattern 3 — top-weight and bottom-weight setting — Flow pattern 3

Circular vibro screen material flow pattern 4 — top-weight and bottom-weight setting — Flow pattern 4

Working principle

Gyratory motion in three planes

An unbalanced motor with a double-extended shaft carries eccentric weights at both ends. The top weight rotates near the centre of mass, creating horizontal vibration that throws material across the screen cloth to the periphery — discharging oversize faster.

The bottom weight rotates below the centre of mass, tilting the screen to add vertical and tangential motion. This turns material over on the surface so the maximum quantity of undersize passes through. Rugged springs on the circular base amplify the vibration. Adjusting the lead angle (0°, 15°, 35°, 90°) tunes how material travels — from a straight radial throw to a long spiral path for maximum screening.

Applications

Screening across industries

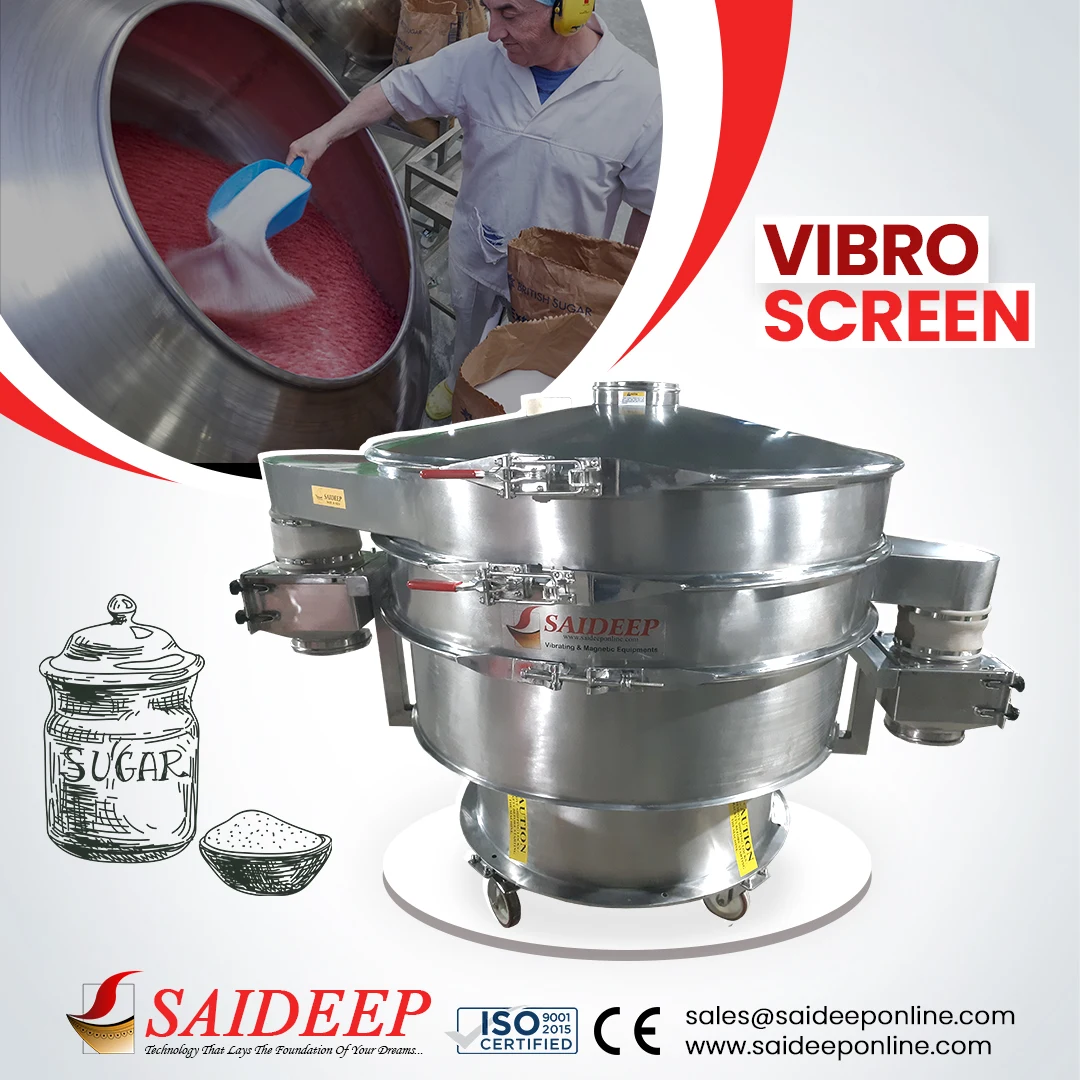

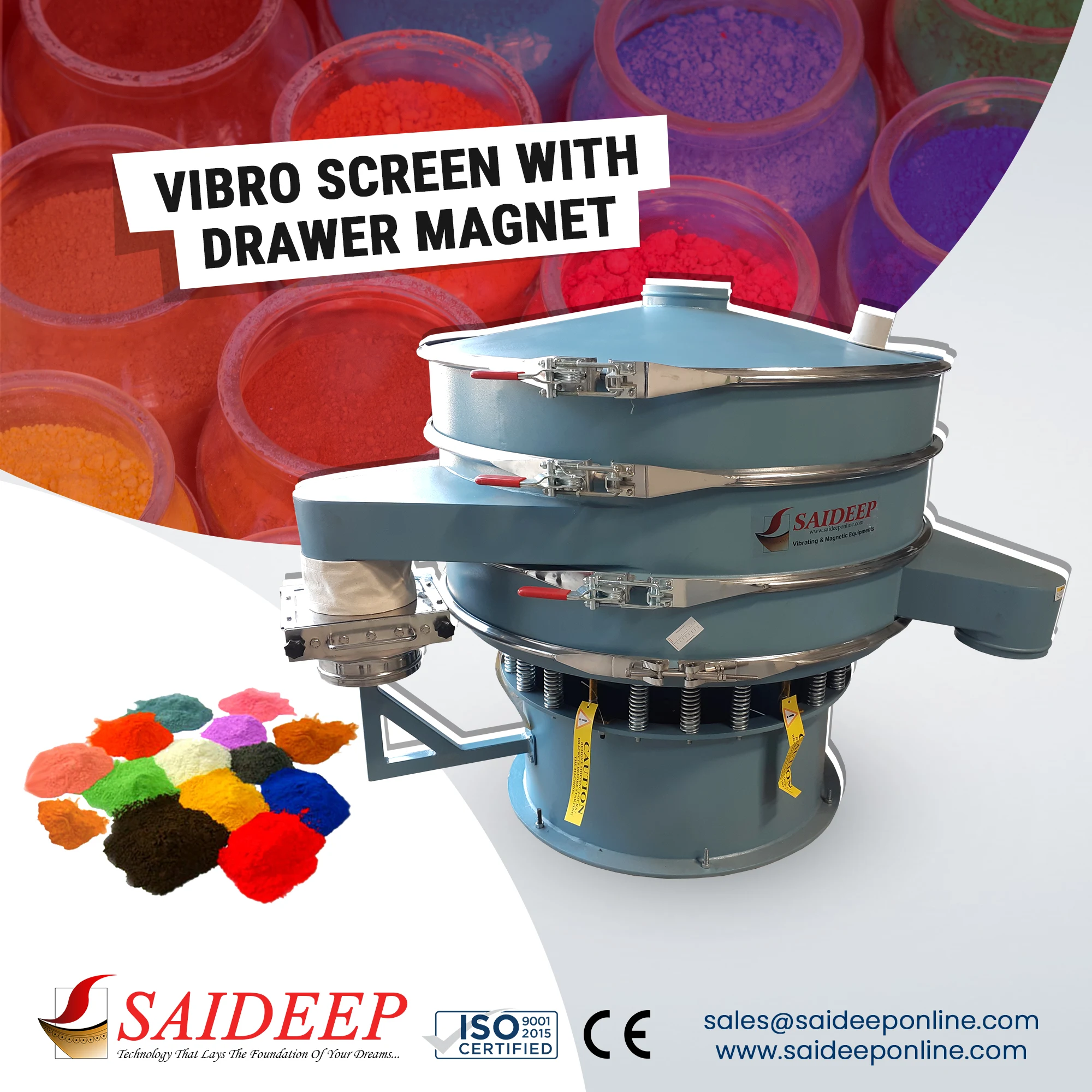

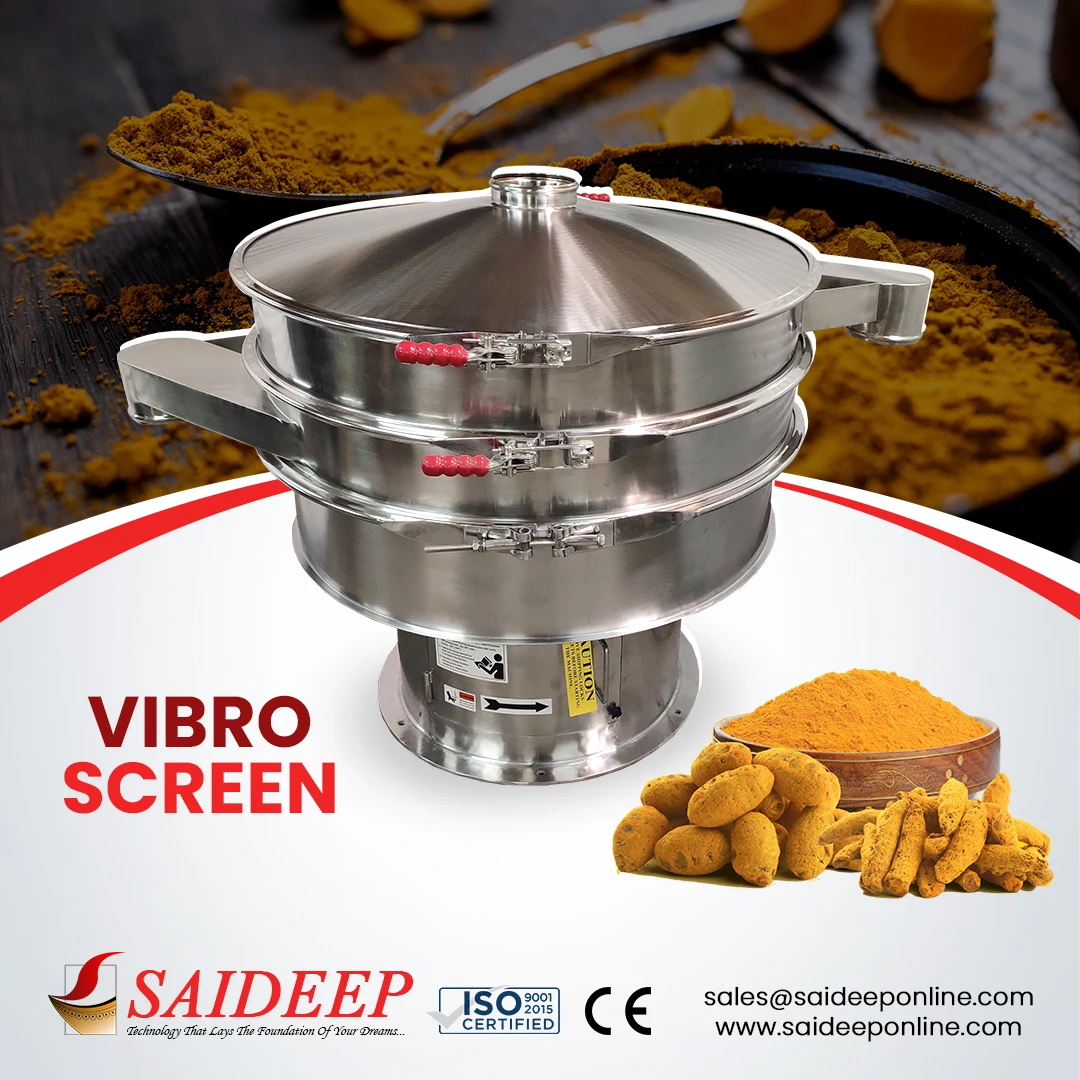

Minerals & chemicals grading Food, grain & spice sifting Pharma powder safety screening Slurry & sludge dewatering De-dusting & scalping Recovery of fines

FAQs

Circular Vibro Screen — common questions

How many fractions can one screen separate?

The modular design stacks multiple decks, so a single machine can separate into several predetermined fractions in one pass. Tell us how many grades you need and we’ll configure the decks accordingly.

How do you prevent screen blinding?

Anti-blinding trays with bouncing balls or PVC sliders sit beneath the mesh to keep apertures clear, and the lead-angle adjustment tunes material travel — together they minimise blinding even with sticky or fine materials.

Is a stainless / food-grade version available?

Yes. We build mild-steel and stainless-steel versions with hygienic finishes for food, pharma and chemical duties, and the closed-circuit design keeps the process dust-free.

What sizes do you offer?

Screens are built to your capacity and material. Share your throughput, material and required fractions and our engineers will recommend the right diameter, deck count and mesh.
