Rectangular Vibro Screen

Twin-motor linear-motion screening for high-throughput grading. Two vibrating motors running in opposite directions drive the frame in a straight line, conveying oversize particles forward and out — even with the deck inclined uphill.

Dual-motor linear motion High fluid throughput

Request a quote WhatsApp us

Overview

Straight-line screening, built to your plant

Saideep rectangular vibrating screens use two vibrating motors rotating in opposite directions to drive the frame in a linear, straight-line motion perpendicular to the plane of the motors. This produces excellent forward conveyance of oversized particles — even uphill — and can be adapted by the factory to meet special requirements for plant layout, screen performance and environmental constraints.

Technical specifications

Rectangular / linear screen range

Screen openings	3/8″ (10 mm) down to 400 mesh (38 microns)
Capacity range	80 kg to 8000 kg per hour
Drive	Two vibrator motors rotating in opposite directions — CE & ATEX certified
Design	Zero-contamination build with laser-cut perforated panels; bolt-free quick-clamping toggle
Isolation	European oscillation mount isolators for accurate angular vibration

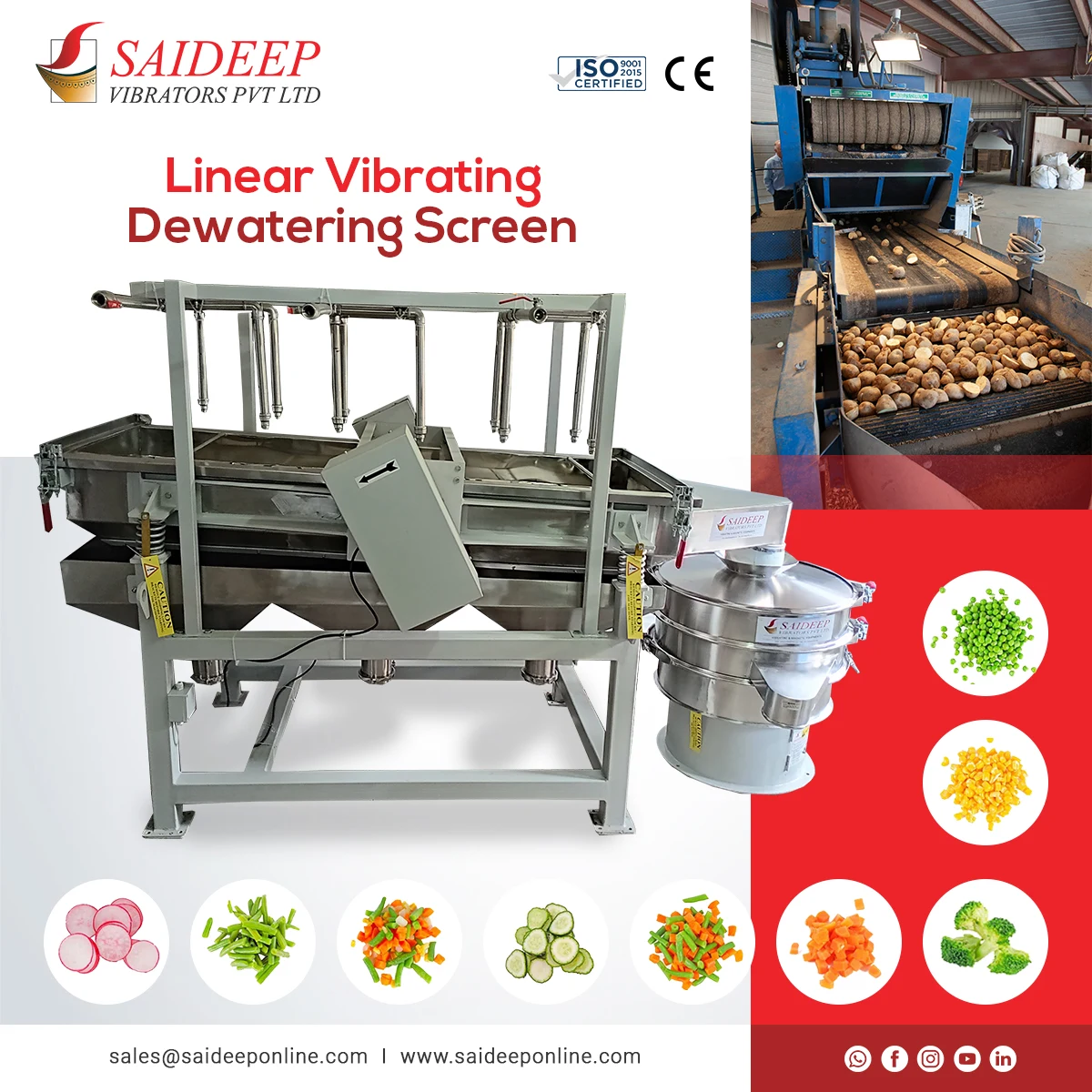

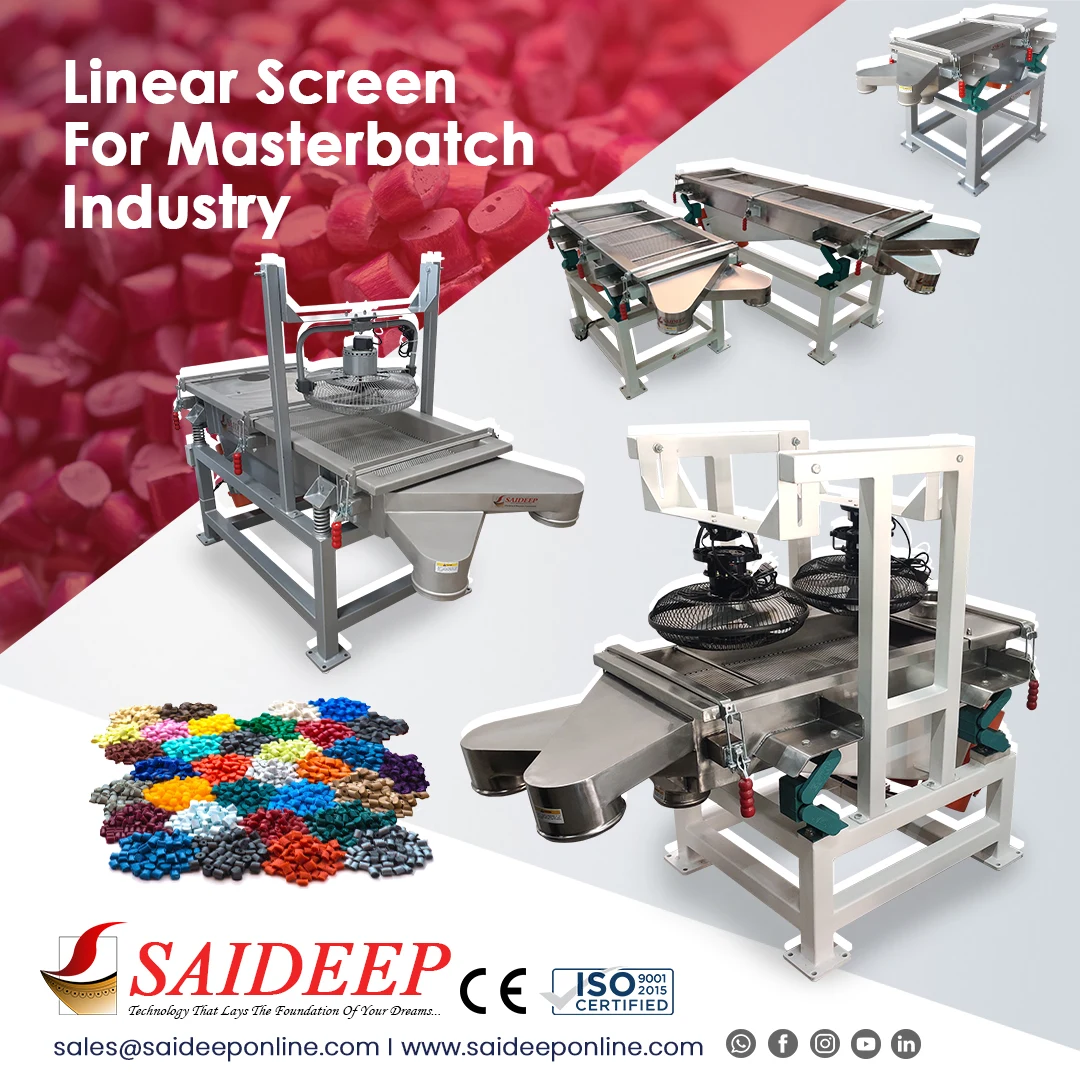

Options	Forced air for quick cooling or drying · washing sprinklers

Model range

Model	Screening area (m²)	Capacity (kg/hr)
SRS 300 × 900	0.27	80
SRS 400 × 1000	0.48	250
SRS 500 × 1200	0.6	500
SRS 500 × 1500	0.75	750
SRS 750 × 2000	1.5	1,000
SRS 750 × 2500	1.87	1,500
SRS 750 × 3000	2.25	2,000
SRS 1000 × 3000	3.0	3,000
SRS 1200 × 4000	4.8	5,000
SRS 1500 × 4500	6.75	8,000

Model designation gives the screen deck width × length in millimetres. Capacities vary with material, mesh aperture and required cut. Specifications are subject to change with continuous design improvement — contact us for a certified drawing and data sheet for your duty.

Download the catalogues

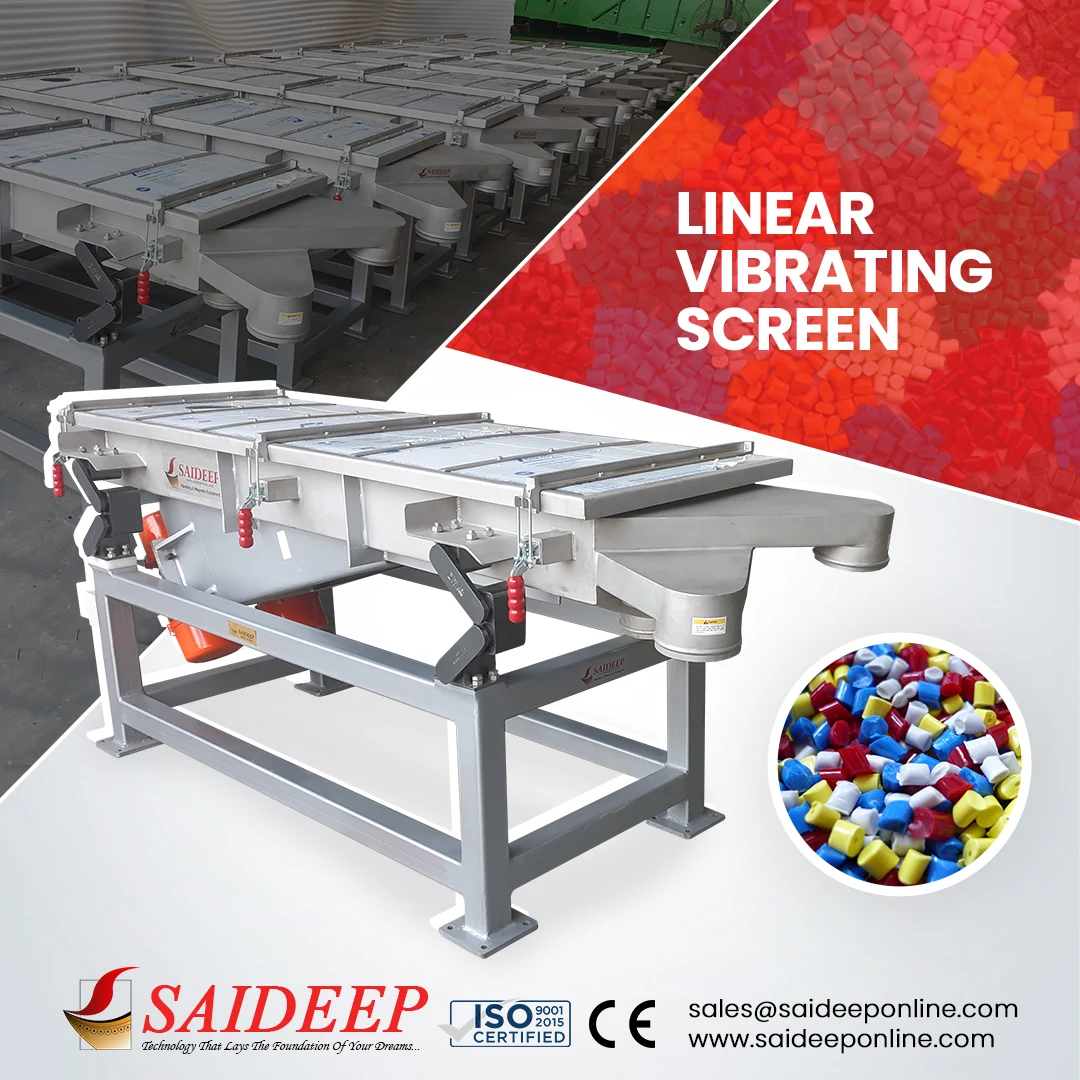

Linear vibrating screen catalogue (PDF) Linear screen for plastics catalogue (PDF)

Benefits

Why operators choose the rectangular screen

Twin-motor drive with motors rotating in opposite directions for true linear motion.
Excellent forward conveyance of oversized particles, even with the frame inclined uphill.
Adjustable inclination — the frame can be positioned at various degrees downhill to suit the application.

High fluid throughput — the pool that forms at the feed end adds head that increases throughput.
Adaptable design for plant layout, screen performance and environmental constraints.
Choice of accessories, painting systems and materials of construction to your specification.

Working principle

Linear motion from two counter-rotating motors

The screen is equipped with two vibrating motors rotating in opposite directions. This dual-motor configuration causes the screen frame to vibrate in a linear, straight-line motion perpendicular to the plane of the motors, producing excellent forward conveyance of oversized particles — even when the frame is in an uphill position.

Maximum capacity is achieved in the uphill position, where a pool forms at the feed end of the machine. The head, or pressure, from that pool increases fluid throughput, and the horizontal vibrating action efficiently conveys oversized particles out of the pool area to discharge.

Applications

Grading & separation across industries

Minerals & aggregates grading Chemicals & fertilizers Food & grain processing Slurry & fluid screening Scalping & de-dusting Recovery of fines

FAQs

Rectangular Vibro Screen — common questions

How does the rectangular screen generate its motion?

It uses two vibrating motors rotating in opposite directions. This causes the frame to vibrate in a linear, straight-line motion perpendicular to the plane of the motors, which conveys oversized particles forward to discharge.

Can it screen with the deck inclined uphill?

Yes. The linear motion gives excellent forward conveyance even when the frame is in an uphill position. Maximum capacity is achieved uphill, where a pool forms at the feed end and the resulting head increases fluid throughput.

Can the screen be customised?

Yes. The rectangular vibrating screen can be adapted by the factory to meet special requirements for plant layout, screen performance and environmental constraints, with a range of features, accessories, painting systems and materials of construction available.

How do you size it?

Share your material, required fractions, throughput and any layout or environmental constraints, and our engineers will specify the right screen and configuration.

Request a Rectangular Vibro Screen quote

Tell us your material, throughput and the fractions you need — we’ll size the screen and quote it delivered to South Africa.
