Electromagnetic Vibrating Feeder

Precise, instantly controllable feeding, dosing and screening of bulk materials and powders — with no rotating parts to wear. The electromagnetic drive starts, stops and varies feed rate in milliseconds for accurate, repeatable control.

Variable feed rate No rotating parts Instant start/stop

Request a quote WhatsApp us

Overview

Controllable feeding for conveying, dosing & screening

Electromagnetic vibratory feeders convey, dose and screen bulk materials and powders with exceptional control. Because the drive is electromagnetic — not a rotating motor — feed rate is set electrically and responds instantly, making the feeder ideal for accurate metering into process and packaging lines. Linear feeders suit everything from heavy minerals to delicate snack foods.

Technical specifications

Electromagnetic vibratory feeder range

Feed capacity	From a few grams to 200 tonnes per hour, depending on material bulk density
Standard supply	230 V, 50 Hz
High-power supply	415 V, 50 Hz
Custom supply	Other voltages and frequencies to order

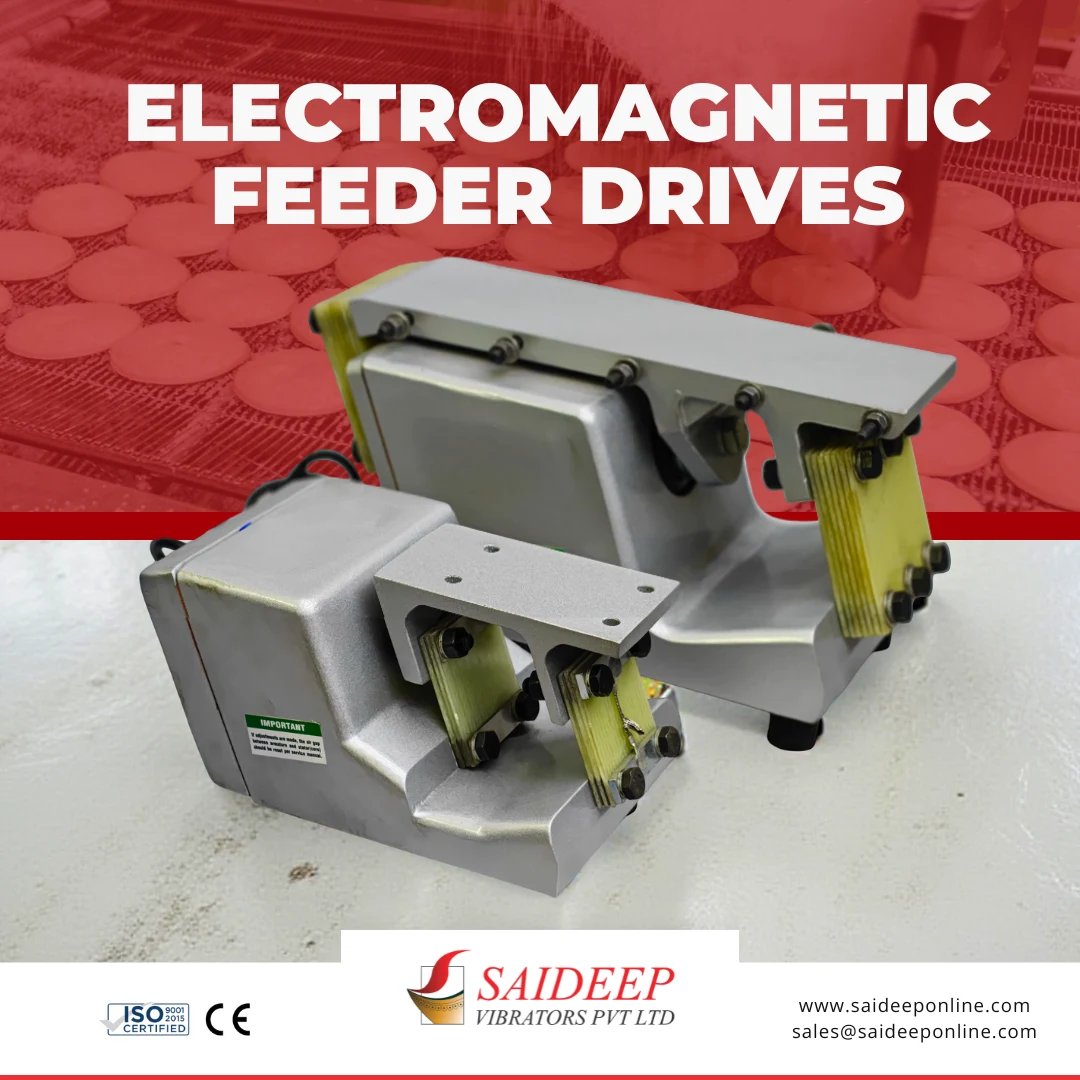

Drive	Electromagnetic — no mechanical wearing parts, no lubrication required
Control	Vibro feeder controller; standard and special controller arrangements available
Tray types	Pan tray · screen bed tray · tubular trough · ‘V’ tray · tray with feed hopper · grizzly trough

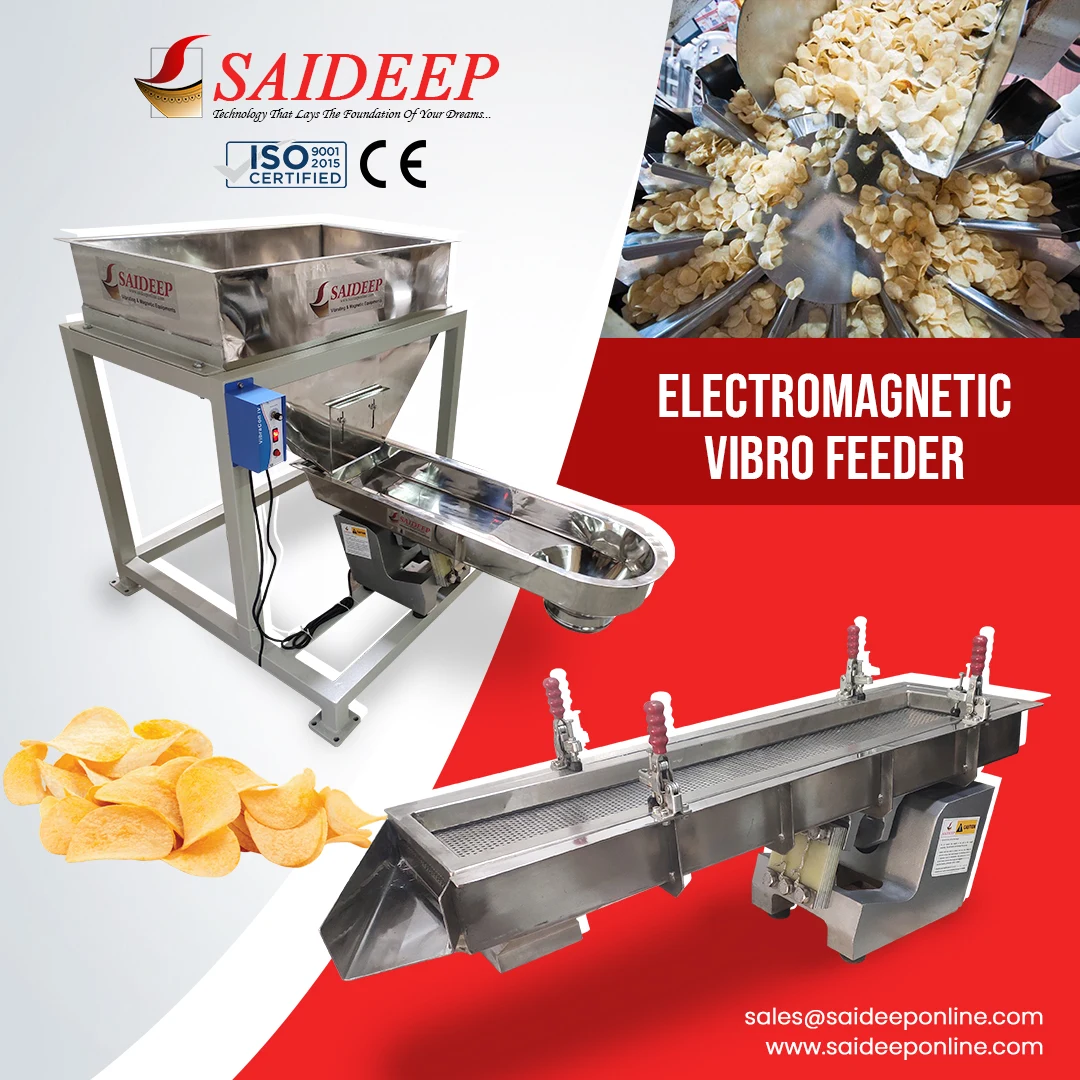

SFF series — base mounted

Model	Drive dimensions (mm)									Drive weight (kg)	Power (W)	Input current (A)	Max tray size (mm)		Feed rate (TPH)
Model	A	B	K	M	D	E	F	C	ØH	Drive weight (kg)	Power (W)	Input current (A)	Length	Width	Feed rate (TPH)
SFF-1	75	225	165	57	115	25	25	75	6	5	15	0.2	300	50	0.6
SFF-2	125	275	143	80	153	15	45	95	6	15	30	0.75	600	200	10
SFF-2.5	157	275	143	80	153	15	45	95	9	22	50	0.78	700	250	10
SFF-3	200	380	224	152	248	50	115	80	9	54	100	2.25	1000	300	7.5
SFF-4	265	390	190	195	285	50	127	100	11	74	180	4	1500	300	25
SFF-4.5	390	390	190	270	285	50	127	100	11	94	200	4.5	1500	300	25
SFF-5	—	—	—	—	—	—	—	—	—	120	600	5	2200	500	20

Supply 230 V / 50 Hz standard; high-power feeders 415 V / 50 Hz. Other voltages and frequencies on request. Dimensions refer to the tray-mounting arrangement drawings in the catalogue.

SDF series — suspension mounted

Model	Tray size W × L (mm)	Capacity per hour	Power consumption
SDF-3	300 × 900	25 TPH	350 W
SDF-4	500 × 1000	50 TPH	600 W
SDF-5	600 × 1200	75 TPH	900 W
SDF-6	750 × 1500	100 TPH	1200 W
SDF-7	900 × 1600	125 TPH	1500 W

Special HD series — suspension mounted

Model	Tray size (mm)	Capacity per hour	Power consumption
SDF-3.5	500 × 1000	60 TPH	1000 W
SDF-4.5	750 × 1100	100 TPH	1500 W
SDF-5.5	900 × 1500	150 TPH	2100 W
SDF-6.5	900 × 1500	200 TPH	2800 W

Suspension-mounted capacities are quoted for material of 1500 kg/m³ bulk density. Any tray size can be manufactured to suit the application. Specifications are subject to change with continuous design improvement — contact us for a certified drawing and data sheet for your duty.

Download the catalogues

Electromagnetic vibro feeder catalogue (PDF) Electromechanical vibrating feeder catalogue (PDF)

Moving material over distance rather than dosing it? This feeder is electromagnetic, tuned for precise controllable feed. For continuous transport along a tray, see the motorised vibratory conveyor.

Features & benefits

Accuracy with almost no maintenance

Precise, variable control

Feed rate adjusts electrically with instant start/stop for accurate dosing and metering.

No rotating parts

The electromagnetic drive has no gearboxes or bearings to wear — minimal maintenance.

Clean & hygienic

Stainless trays and a sealed drive suit food, pharma and chemical processes.

Light to heavy duty

From delicate snack-food dosing to robust mineral feeding — a model for every load.

Easy integration

Pairs with hoppers, screens and packaging machines; control via simple variable controllers.

Built to ISO 9001

Manufactured to an ISO 9001:2015 quality system and exported worldwide.

Industries

Used across processing & packaging

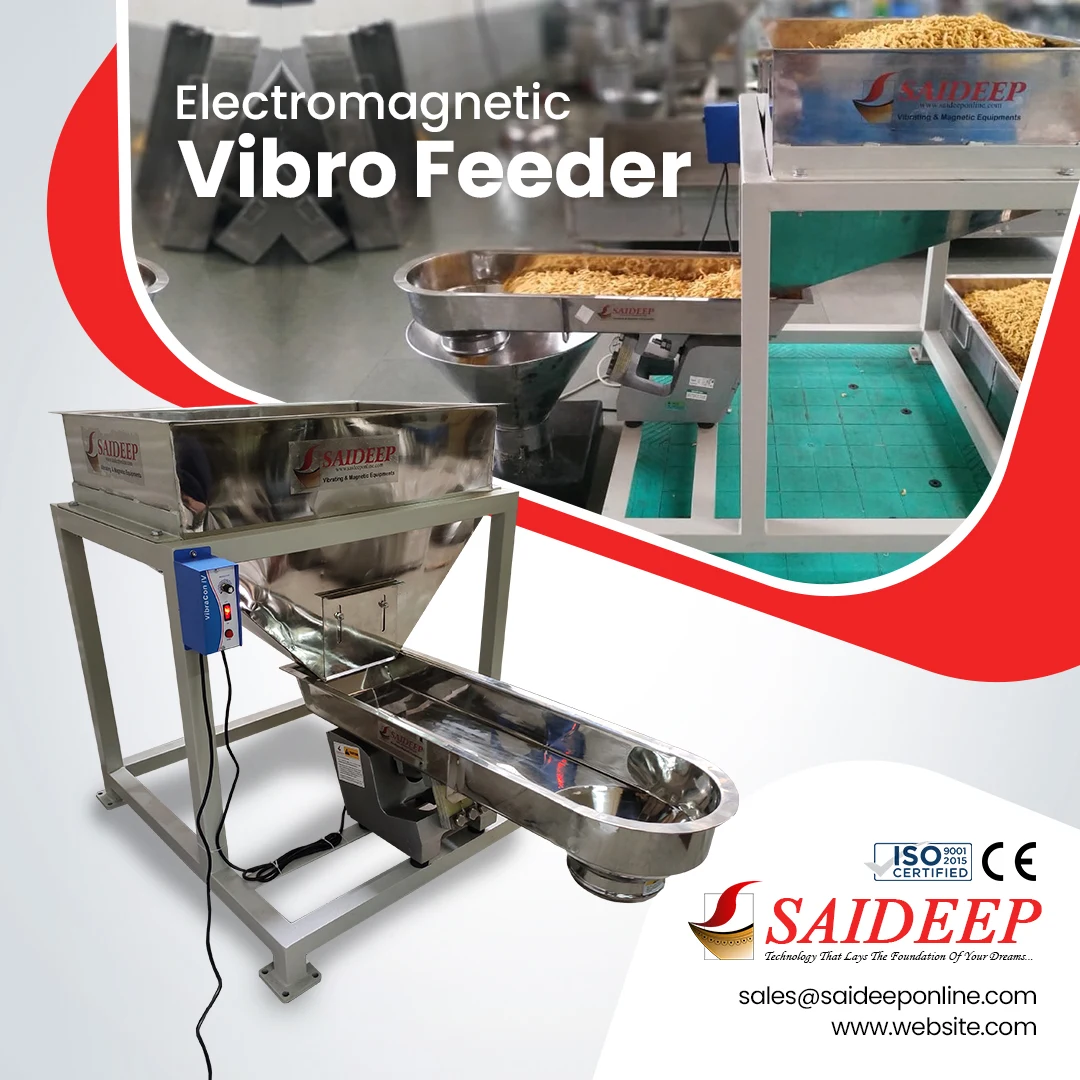

Snack food, grain & rice milling
Plastics, rubber & glass
Pharmaceutical, chemical & fertilizer
Food processing & allied industries

Integrates with

Process & packaging machines

Colour sorters & flavouring / seasoning drums
Multihead weighers & form-fill-seal machines
Feed hoppers for bucket elevators
Unloading from hoppers, silos & bins

FAQs

Electromagnetic Vibrating Feeder — common questions

How is an electromagnetic feeder different from a motorised one?

An electromagnetic feeder is driven by an electromagnet rather than a rotating motor, so it has no gearboxes or bearings to wear, starts and stops instantly, and its feed rate can be varied precisely with a simple controller — ideal for accurate dosing.

Can the feed rate be controlled automatically?

Yes. Feed rate is set electrically and can be linked to a variable controller or your plant control system for automatic, repeatable dosing and metering.

Is a food-grade / stainless version available?

Yes — stainless trays and hygienic designs are available for food, pharma and chemical duties, including light-duty units for packaging lines.

How do you size the feeder?

Share your material, required feed rate (kg/h or t/h), particle size and the machine it feeds, and our engineers will recommend the right tray size and drive.
