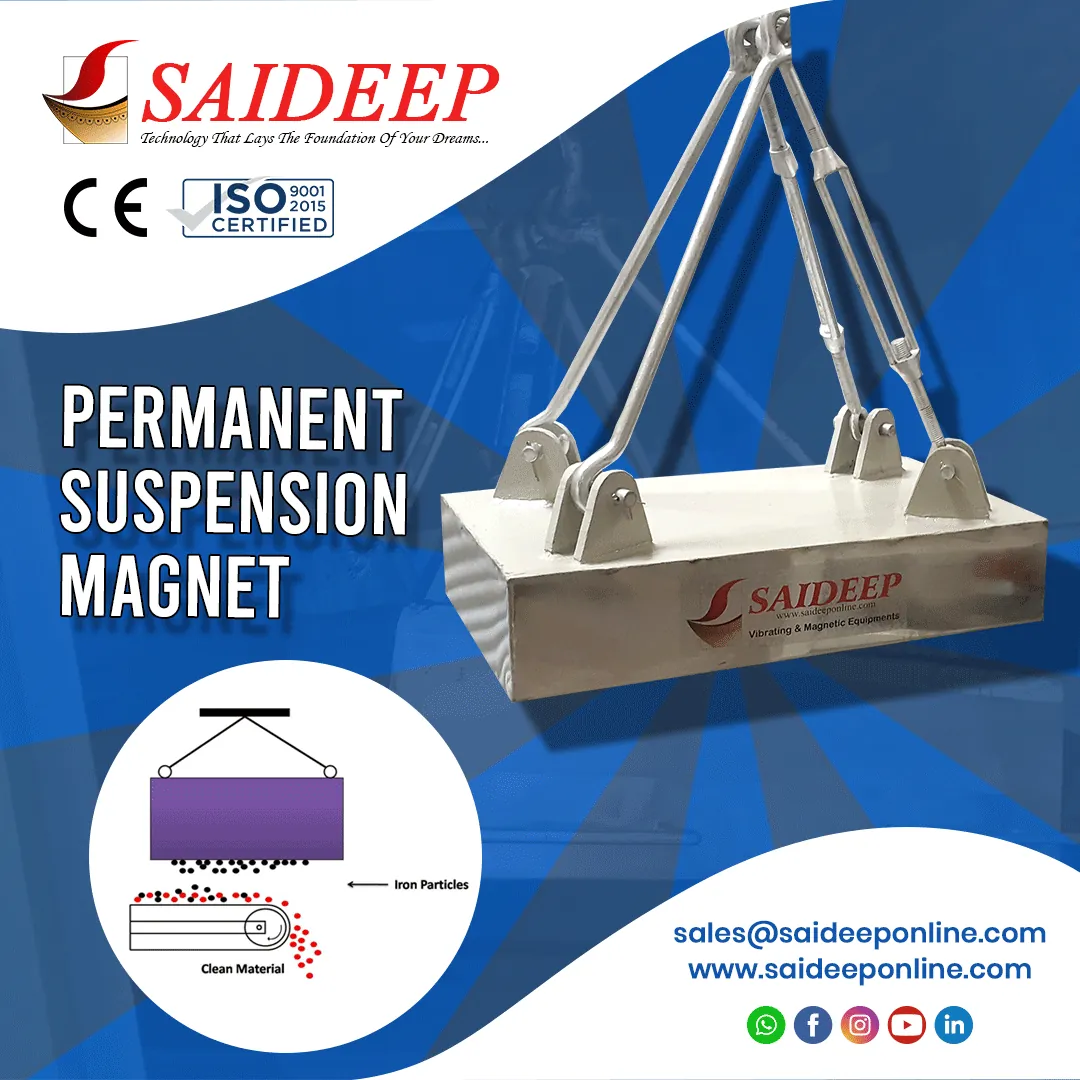

Suspension Magnet
A permanent magnet suspended over a belt or roller conveyor that traps large free ferrous particles before they reach your machinery — often sited ahead of a metal detector to protect crushers, grinders and material-handling equipment.
Overview
The backbone of continuous process protection
Suspension magnets are the backbone of the continuous process industry. The permanent magnet is suspended over a conveyor line to remove iron impurities mixed with product moving on the belt, and can equally serve any other material-feeding system to avoid damage to crushers, grinders and other material-handling equipment. Suspended over belt or roller conveyors prior to a metal detector, it traps all the free large ferrous particles that could otherwise damage in-process machinery. Where required, it can be built in a self-cleaning design — the Over Band Magnetic Separator.
Technical specifications
Suspension Magnet specifications
| Magnet type | Permanent magnet field |
| Power supply | None — no electrical hook-ups required |
| Construction | Heavy-duty, all-welded |
| Impact protection | Heavy-duty impact plate |
| Design | Compact |
| Application | Over-the-belt conveyor installations, high-volume tramp metal removal |
| Conveyor belt width | 400 mm to 1500 mm |
| Operating height | 100 mm to 400 mm — minimum 400 Gauss at the operating height |
| Magnet type | Strontium ferrite |
| Gauss power | 2500 Gauss (±10%) |
| Suspension | Two adjustable and two fixed turnbuckles with a bull ring |
| Optional upgrade | Manual slide sheet |
Recommended magnet length by operating height
| Operating height | Magnet length |
|---|---|
| 100 mm | 500 mm |
| 150 mm | 550 mm |
| 200 mm | 800 mm |
| 250 mm | 1050 mm |
| 300 mm | 1300 mm |
| 350 – 400 mm | 1500 mm |
The magnet is sized to the material depth and belt speed of the conveyor. Suspension magnets can also be used in conjunction with a magnetic pulley for a two-stage capture.
Sized to the belt width and burden depth of the installation. Specifications are subject to change with continuous design improvement — contact us for a certified drawing and data sheet for your duty.
