Magnetic Pulley

A magnetic head pulley that delivers automatic, continuous tramp-iron removal at the discharge of a conveyor belt — separating ferrous contamination from your product as it tips over the pulley. Available in Rare Earth and Ferrite circuits.

Automatic separation Rare Earth or Ferrite Built to your belt

Request a quote WhatsApp us

Overview

Tramp-iron removal built into your conveyor

Saideep manufactures a wide range of Rare Earth and Ferrite magnetic pulleys, widely used to remove tramp iron mixed with the material moving on a conveyor belt. The magnet pulley is always installed at the discharge point of the conveyor, so as product tips over the pulley the non-magnetic material falls away on its natural trajectory while ferrous pieces are held to the belt and released past the discharge — separating tramp iron from the product, automatically and continuously.

Technical specifications

Magnetic Pulley specifications

Magnet options	Rare earth or ferrite
Pulley width	Determined by the width of the conveyor belt
Pulley diameter	Selected from material depth and conveyor speed
Installation	At the discharge point of the conveyor
Function	Dual purpose — protects crusher jaws and machinery, and concentrates magnetic material
Customisation	Designed to suit the application
Face width	50 mm to 100 mm wider than the conveyor belt
Material depth	Rare-earth pulleys handle burden depths up to 300 mm

Give us your belt width, burden depth and belt speed and we will size the pulley. Specifications are subject to change with continuous design improvement — contact us for a certified drawing and data sheet for your duty.

Download the catalogue

Magnetic separators catalogue (PDF)

Features & benefits

A head pulley that does two jobs at once

Automatic separation

Replaces the conveyor head pulley so tramp iron is drawn off continuously — no operator intervention.

Rare Earth or Ferrite

Choose a Rare Earth or Ferrite magnetic circuit to match the strength your product and contamination need.

Protects equipment

Captures tramp iron before it reaches crushers, mills and screens downstream — avoiding damage.

Sized to your belt

Pulley width is set by the conveyor belt width for a direct, bolt-in replacement.

Diameter to suit duty

Diameter is chosen for the depth of material and the speed of the conveyor.

Designed to application

Each pulley is engineered to suit the customer’s application and installation.

Applications

Wherever conveyors carry your product

Mining & mineral processing Quarrying & aggregates Cement & limestone Recycling & waste Food, grain & sugar Chemicals & minerals

How it works & how to size it

Working principle and selection guide

The magnetic pulley replaces the conveyor head pulley: clean material discharges normally while tramp iron is held to the belt and dropped behind a splitter. Share your belt width and speed and we size the pulley for you.

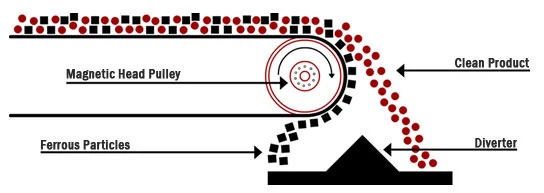

Magnetic head pulley working principle — tramp iron held to the belt and discharged behind a splitter — Working principle

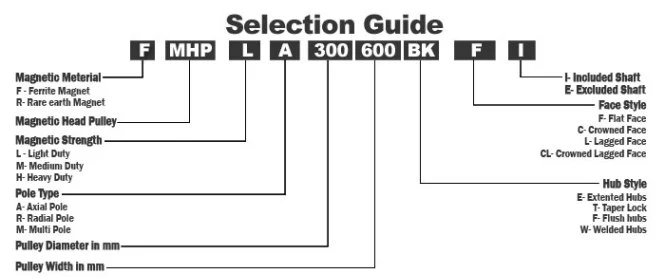

Magnetic pulley selection guide — model coding by diameter and belt width — Selection guide

FAQs

Magnetic Pulley — common questions

Where is the magnetic pulley installed?

At the discharge point of the conveyor. It takes the place of the head pulley so tramp iron is separated from the product as it tips over the pulley — automatically and continuously.

Rare Earth or Ferrite — which do I need?

Saideep makes both. Rare Earth circuits give a stronger field for finer or more stubborn ferrous; Ferrite circuits suit larger tramp iron and lighter duties. We’ll advise based on your material and contamination.

How do you size the pulley?

Pulley width is determined by the width of the conveyor belt, and the diameter is chosen for the depth of material and the speed of the conveyor. Each pulley can be designed to suit your application.

What does it protect?

By drawing tramp iron off the belt at discharge, it keeps ferrous contamination out of crushers, mills, screens and other downstream machinery — preventing damage and downtime.

Request a Magnetic Pulley quote

Tell us your belt width, material depth and conveyor speed and we’ll size the pulley and quote it delivered to South Africa.
