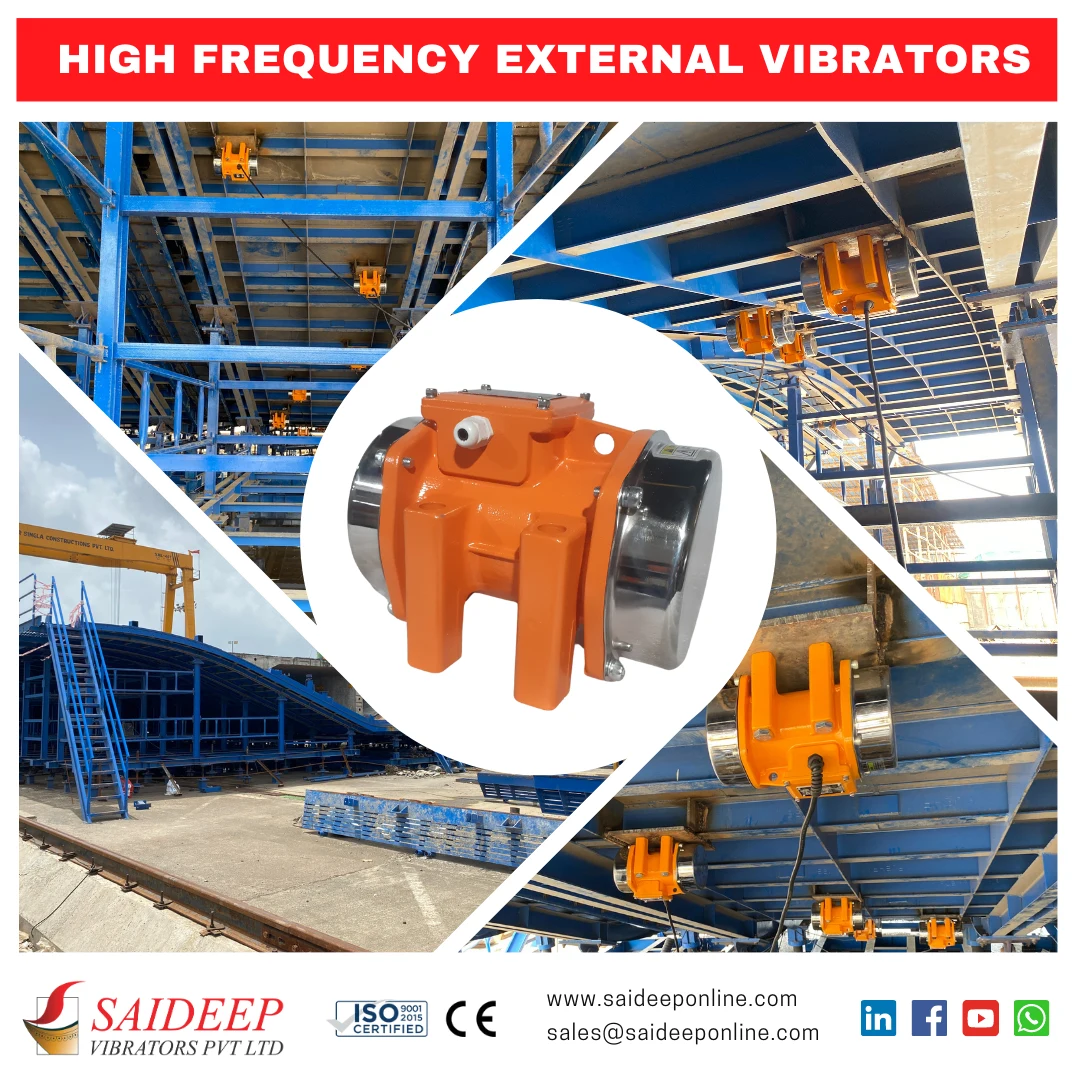

High Frequency Vibrators

External shutter vibrators for dense, watertight concrete compaction — clamped to formwork molds, their high-frequency vibration ejects trapped air, blow holes and gaps to deliver a denser pour and a superior surface finish.

Eliminates blow holes Denser compaction

Request a quote WhatsApp us

Overview

High-quality, durable, watertight concrete

Concrete compaction is critical to building a high-quality, durable and watertight structure. Saideep external high frequency vibrators clamp to the formwork mold and transmit rapid vibration through the shutter, driving out air bubbles and gaps so the concrete settles dense and uniform. The result is a stronger structure with a clean, supreme finish — straight off the mold.

Technical specifications

High-frequency vibrator range

Electric high-frequency vibrators — SV / SVAR series

Model	Max force (N)	Power (kW)	RPM	Weight (kg)	Max current (A)
Model	Max force (N)	Power (kW)	RPM	Weight (kg)	42 V	230 V (Δ) / 400 V (Y)
SV 290/6 *	2,970	0.27	0–6,000	5	5	0.92 / 0.53
SV 1530/6 *	13,840	1	0–6,000	12	15	2.80 / 1.62
SV 1300/6 *	14,460	1.3	0–6,000	22	23	4.22 / 2.44
SV 1300/6	14,460	1.3	0–6,000	28	23	4.22 / 2.44
SV 2000/6	19,894	1.3	0–6,000	28	23	4.22 / 2.44
SV 2000/9	21,150	1.5	0–9,000	30	28	5.02 / 2.90
SVAR 52/6/42	14,140	1.1	0–6,000	19.5	18.2	—
SVAR 52/6/230	14,140	1.1	0–6,000	19.5	—	2.7
SVAR 52/6/400	14,140	1.1	0–6,000	19.5	—	1.92

Models marked * are aluminium frame, foot mounted; all other models are steel graded casting, cradle mounted.

Electric standard-frequency vibrators — SA series

Model	Max force (N)	Power (kW)	RPM	Weight (kg)	Max current (A)
Model	Max force (N)	Power (kW)	RPM	Weight (kg)	42 V	230 V (Δ) / 400 V (Y)
SA 3	3,000	0.27	3,000	17	4.8	0.87 / 0.5
SA 6	6,000	0.75	3,000	30	11	2.6 / 1.5
SA 8	8,000	0.75	3,000	32	20	3.5 / 2.1
SV 1530/3 *	9,555	1	3,000	16	20	4.2 / 2.4

For vibrating tables, concrete walls and viaducts. Models marked * are aluminium frame; all models foot mounted.

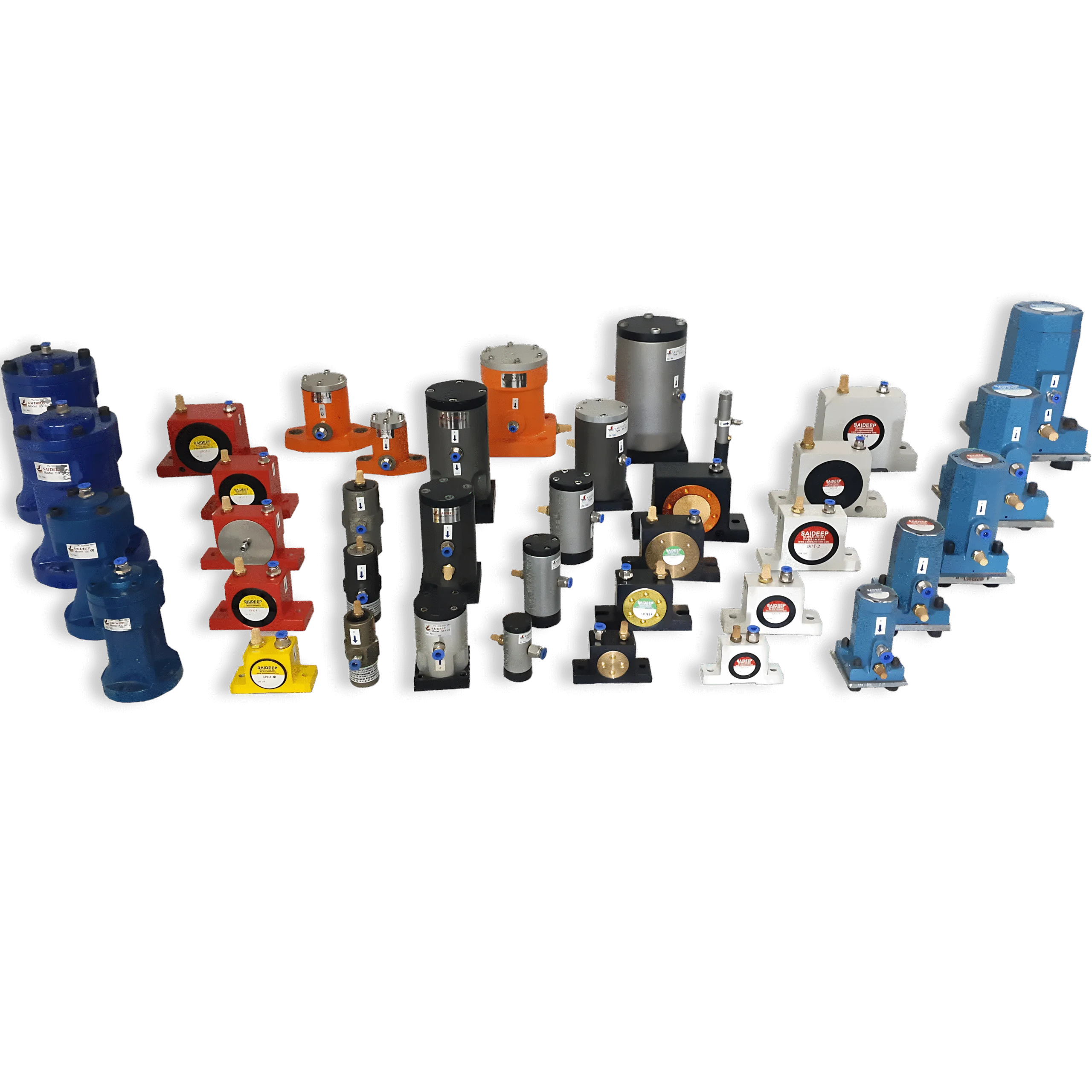

Pneumatic shutter vibrators — SPSV series

Model	Working pressure (bar)	Vibration (vpm)	Centrifugal force (kg)	Air consumption (l/min)	Noise level dB(A)	Weight (kg)
SPSV 1000P	6	16,500	1,122	1,100	100	7
SPSV 1400P	6	16,000	1,453	1,200	100	7.3
SPSV 1000C	6	16,500	1,122	1,100	100	9.8
SPSV 1400C	6	16,000	1,453	1,200	100	10.5
SPSV 4000C	6	15,200	4,079	1,800	103	19.6
SPSV 6000C	6	14,500	6,118	1,800	103	21.4

P models are plain / foot mounted; C models are cradle type for shutter clamping.

TANGO high-frequency convertor — 2 output

Model	TANGO
Output ports	2 (4-output version available)
Input voltage	100–250 V
Input frequency	50/60 Hz
Output voltage	42 V
Output frequency	0–200 Hz (variable)
Current	32 A
Power	2.2 kW
Acceleration time	10 s
Switch	On/Off switch provided
Dimensions	56 × 38 × 21 cm
Weight	9.7 kg (approx.)
In the box	TANGO convertor · keypad with cable · manual

Compact and lightweight, with overload protector, waterproof supply cable and maintenance-free operation. For needle/poker vibrators and external high-frequency vibrators.

SVFC four-point frequency convertor

Model	SVFC-85A-4-32A
Number of ports	4 output ports — 4 sockets (male/female)
Nominal current	13.7 A
Nominal voltage	400 V (±10%)
Nominal frequency	50 Hz
Output current	85 A
Output voltage	42 V
Output frequency	0–200 Hz
Input phase	3
Output phase	3
Input KVA	9
Output KVA	5.5
Power cable	3 m
Enclosure	IP44
Mounting type	Drag trolley

Electric high-frequency external vibrators are supplied to the required supply voltage and frequency. Specifications are subject to change with continuous design improvement — contact us for a certified drawing and data sheet for your duty.

Download the catalogues

High-frequency external vibrators catalogue (PDF) Pneumatic & electric shutter vibrators catalogue (PDF)

Features & benefits

Built for the toughest pours

High-frequency vibration

Rapid vibration ejects air bubbles and gaps for denser, watertight compaction.

Form-mounted

Clamps directly to formwork molds and shutters — no probe in the pour.

Supreme finish

Eliminates blow holes and surface defects for a clean, dense face on every panel.

Electric or pneumatic

External electric shutter vibrators plus high-frequency pneumatic shutter vibrators to suit the site.

Precast-duty build

Engineered for repeated clamp-and-pour cycles in demanding precast yards.

Sized to the job

Specified to your formwork, panel size and concrete mix for the right compaction energy.

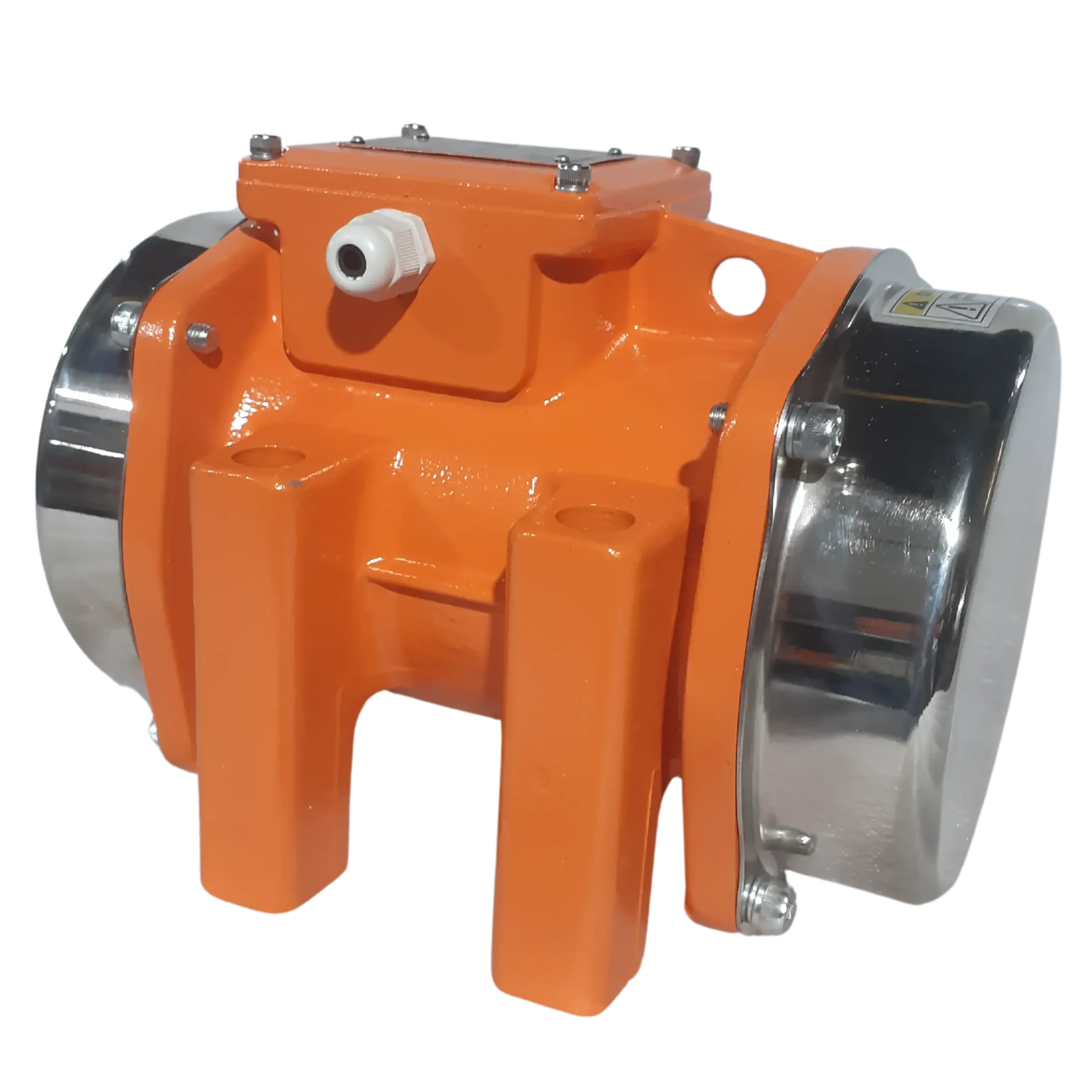

External shutter vibrator clamped to concrete formwork

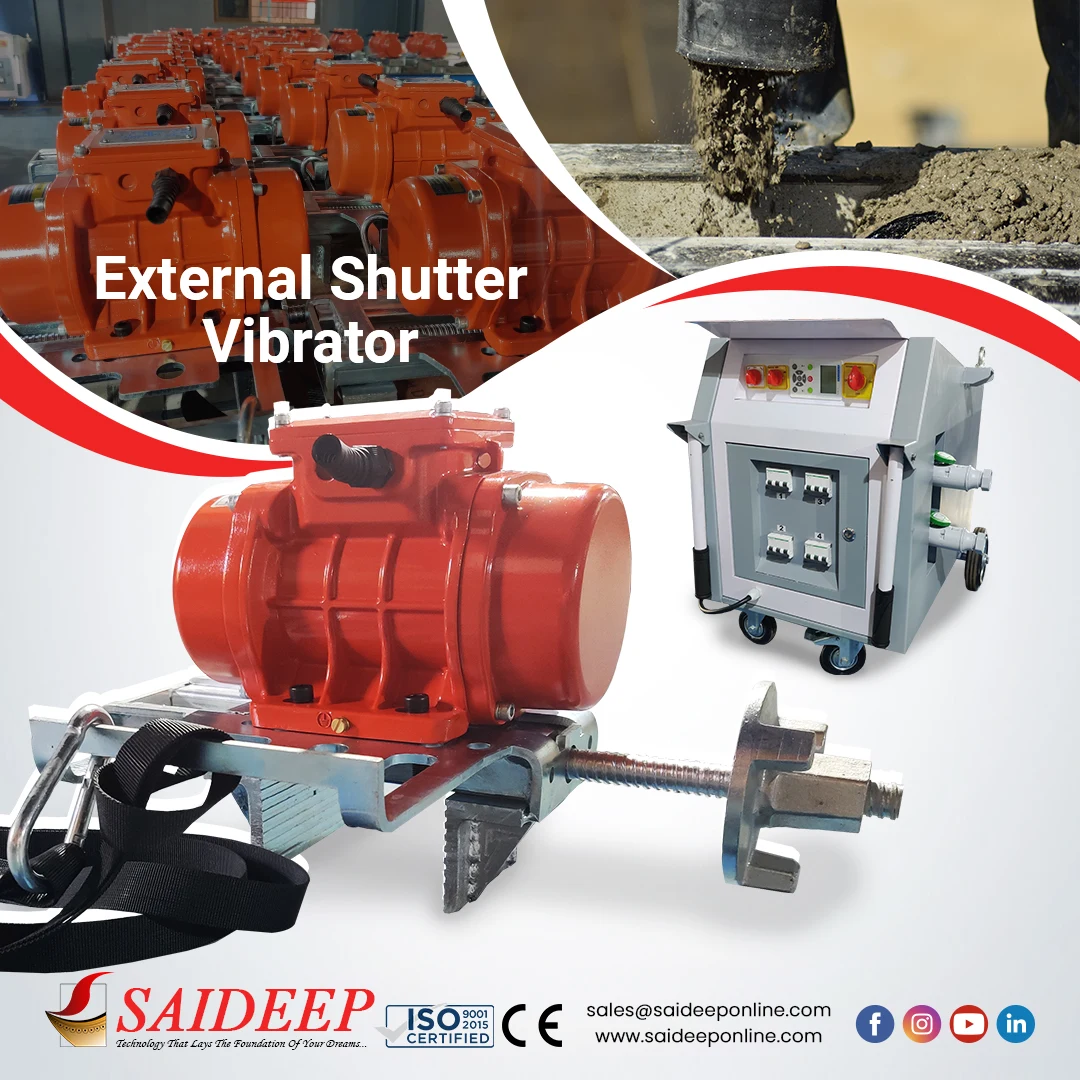

Two types

Electric & pneumatic shutter vibrators

External electric concrete vibrators — also called shutter vibrators — are used for concrete compaction of precast walls and columns, precast gutters, concrete sleepers and similar elements. Clamped to the formwork molds, their high frequency of vibration helps eject air bubbles and gaps, providing denser compaction and a supreme finish to the structure.

External high frequency pneumatic shutter vibrators are used for the construction of concrete segments for tunnels, viaducts and bridges. Placed on the formwork, they deliver solid concrete compaction and eliminate blow holes and air gaps.

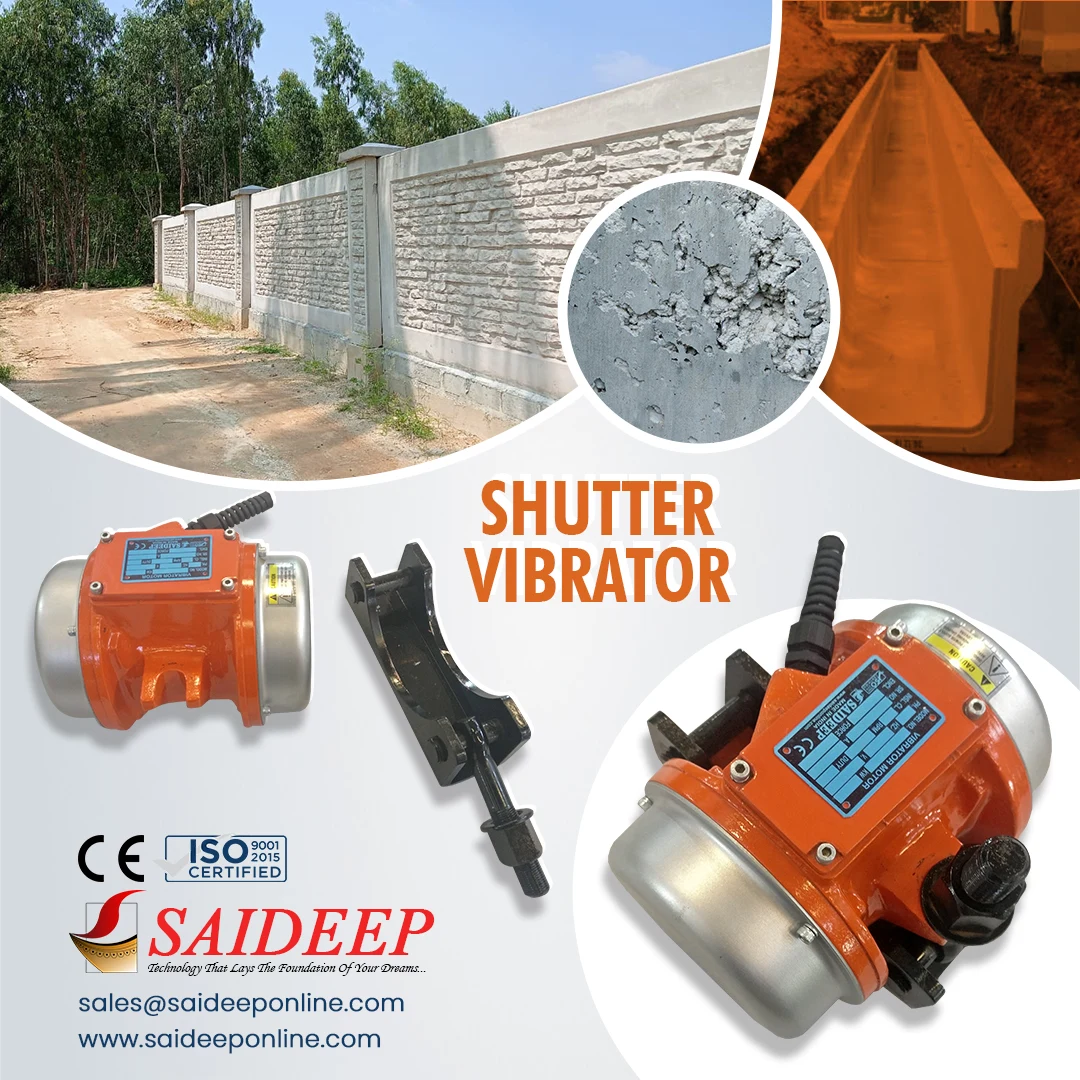

Applications

Precast & infrastructure concrete

Precast walls & columns Precast gutters Concrete sleepers Tunnel segments Viaducts & bridges Precast & construction yards

FAQs

High Frequency Vibrators — common questions

What is an external shutter vibrator?

It is a high-frequency vibrator clamped to the outside of the formwork mold rather than inserted into the concrete. The vibration passes through the shutter into the pour, ejecting air bubbles and gaps for denser compaction and a supreme surface finish.

Where are high frequency vibrators used?

External electric shutter vibrators are used for precast walls and columns, precast gutters and concrete sleepers, while external high frequency pneumatic shutter vibrators are used for concrete segments for tunnels, viaducts and bridges.

Should I choose electric or pneumatic?

Both clamp to the formwork. Electric shutter vibrators suit typical precast elements; pneumatic high frequency shutter vibrators are used for heavier infrastructure segments such as tunnel, viaduct and bridge work. Tell us your application and we’ll recommend the right type.

How do you size the vibrator?

Share your formwork, panel or segment size and concrete mix, and our engineers will specify the right type and number of vibrators to achieve full, void-free compaction.

Request a High Frequency Vibrator quote

Tell us your formwork and concrete application and we’ll specify the right shutter vibrators and quote them delivered to South Africa.
